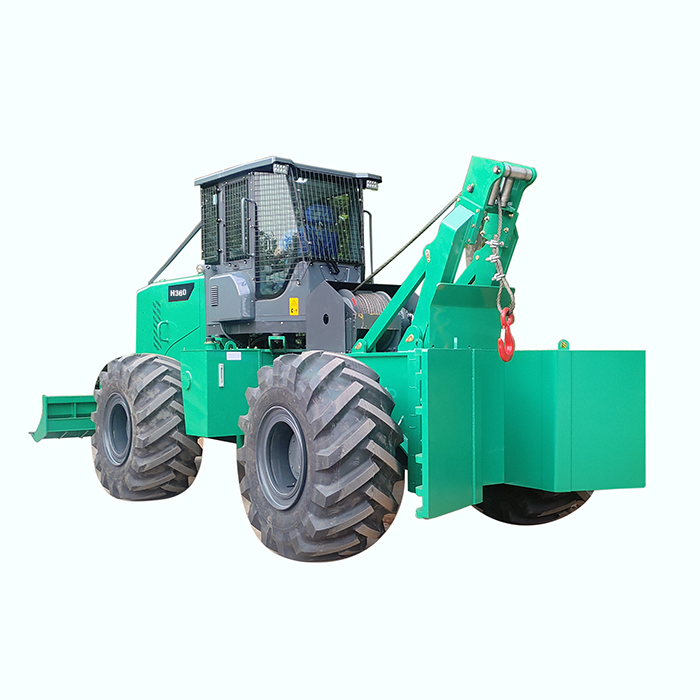

Articulated Chassis Wechai WD10G240E201 Skidder H360

Name: Articulated Chassis Wechai WD10G240E201 Skidder H360
Brand: Qingdao Hornquip Machinery Co., Ltd
SKU: H360
Price: 550.00 USD
Availability: InStock

Herkunftsort	China
Markenname	HORNQUIP
Zertifizierung	CE
Modellnummer	H360

Produkt-Details

Nennleistung:

178kw

Betriebsgewicht:

19.700 kg

Reifen:

23.5-25

Chassis:

Artikuliert

Hervorheben:

Articulated Chassis Skidder

Wechai WD10G240E201 Skidder

Beschreibung des Produkts

Skidder H360

SKIDDER MODEL		H360
Operation mass		19700 Kg
Engine Model		Wechai WD10G240E201
Rated power		178KW/2200rpm
Displacement		10L
Gear		4 (F) 4 (R)
Travel speed (Km/h)	Gear I (F/R)	6/6
	Gear II (F/R)	11/11
	Gear III (F/R)	22/22
	Gear IV (F/R)	34/34
Articulated angle		38°
Tire		23.5-25
Swing angle of front axle		±12°
Winch drive type		Hydraulic motor drive
Maximum traction force of wire cable		204KN
Maximum speed of wire cable		10m/min
Drum capacity (diameter mm xlength m)		Φ22mmX33m
Winch drum diameter (cable type)		273mm
The width of Winding drum		230mm
The height of lifting pushing plate		1381mm
The Depth of the cutting board		456mm
Turning radius (outside tire)		6370mm
Machine length		7840mm
Machine width (tire outside)		3220mm
Machine Height (cab)		3550mm
Tire radius		760mm
Height of the ground to the top of track guide		2700mm
Wheel base		3680mm
Wheel – tread		2622mm
